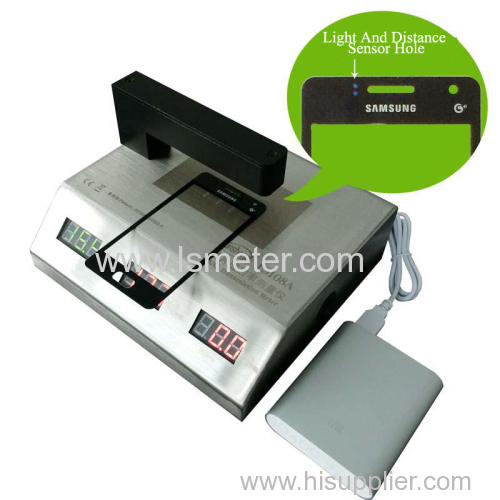

LS108A is used for testing the transmission value of the mobile phone lens, including IR transmission value at wavelength 940nm and 850nm, VL transmission value at wavelength 550nm.
Parameter:
1. Size: 200mm*180mm*106mm(L*W*H)
2. Size of Testing sample: >Diameter:1.0mm
3. Weight: about 1500g
4. Resolution: measure value <10% is 0.1%, other range is 1%
5. Accuracy: +/-2%(Colorless and transparent material)
6. IR Peak wavelength:940nm and 850nm
7. VL Peak wavelength: 550nm
8. Power supply: 5V DC/Portable Mobile power supply (optional)
Features:
1. Especially suitable for mobile phone lens infrared transmittance and visible light transmittance testing;
2. Self-calibration and auto-calibration, after startup automatic transmittance calibration to 100%
3. Stainless steel table design, easy operate
EXW Price:214USD/piece
